battery bus bar
First in poly bag,then in carton.Or as your request.
Ningbo or Shanghai
1 - 100
To be negotiated
Epoxy powder coating copper bus bar for new energy battery
RHI specialize in custom designing and manufacturing bus bars for automotive, battery bank, power storage, switch gear etc. Custom bus bars can be plated in tin, nickel or silver to suit specific applications. Our technicians can assist customers in developing product design and develp prototypes from client drawings. With copper bus bars, customers can eliminate wiring errors and reduce assembly costs.
Material Standard :GB : T2 Copper with Min. 99.9% ,DIN: E-Cu58 (Number: 2.0065),EN: Cu-ETP ( Number: CW004A),ISO: Cu-ETP, UNS: C11000, JIS: C1100,BS: C101
Resistance :0.00001Ω Conductivity :57% Copper Single Layer Thickness :0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure Insulation Material :PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times.Insulation Performance PE and PVC are good, PVC dipping is better than PE heat shrink tubes Flame Retardant/Fire Resistance :UL94-V-0 or upon you request Leakage Testing PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA; In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA; Surface Plating :Nickel, tin or silver plated etc Plating Thickness:Normally 3um to 12um Salt Spray Testing: In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest Bending Testing Bend 10000 times in 15 radian angle without breakage or fracture. Temperature Rise Testing :Depend on flexible busbar cross-sectional area, We can offer all temperature rising test report before delivery if you request Operating Temperature :-45 to +150 ºC Copper Tensile Strength ≥500N Quality Management Standard Meet Auto Industry IATF 16949

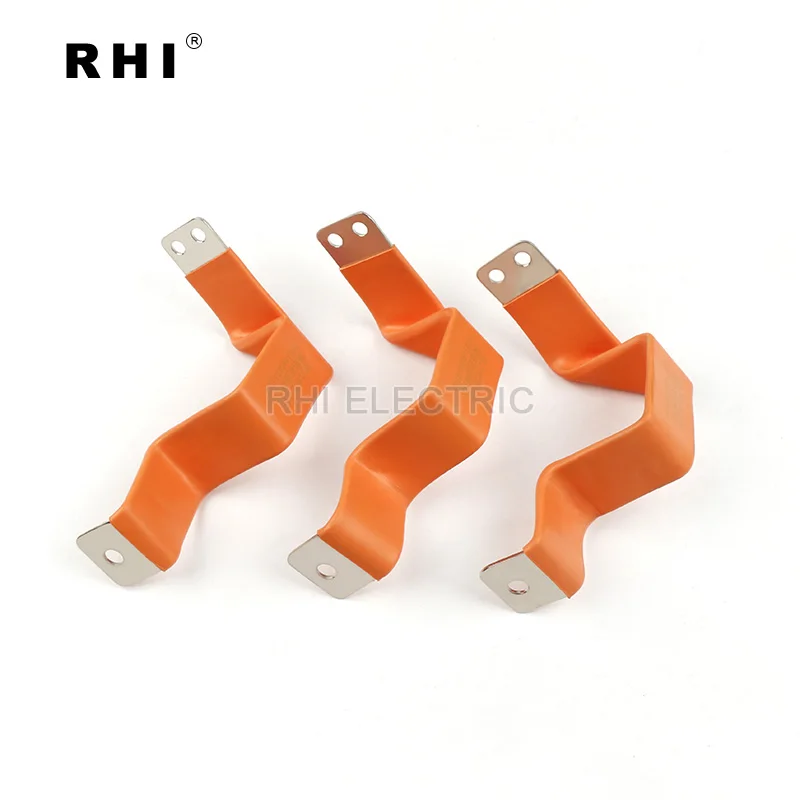

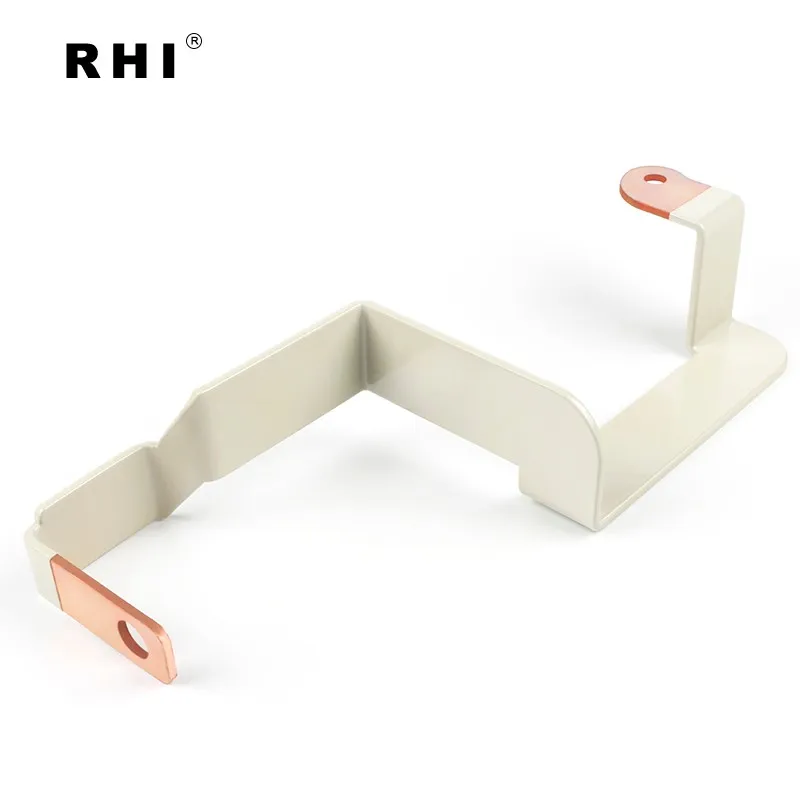

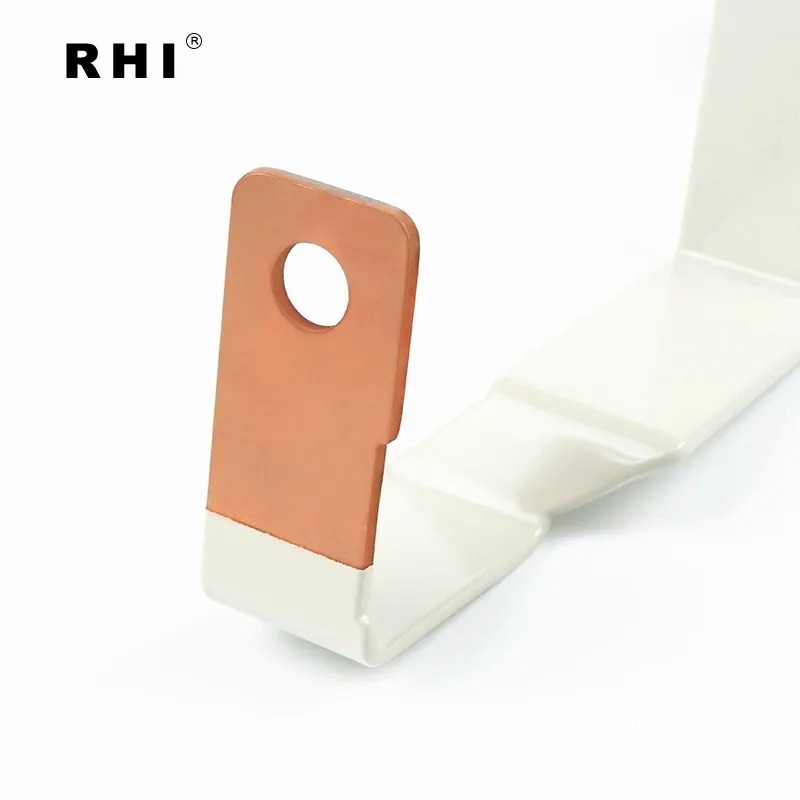

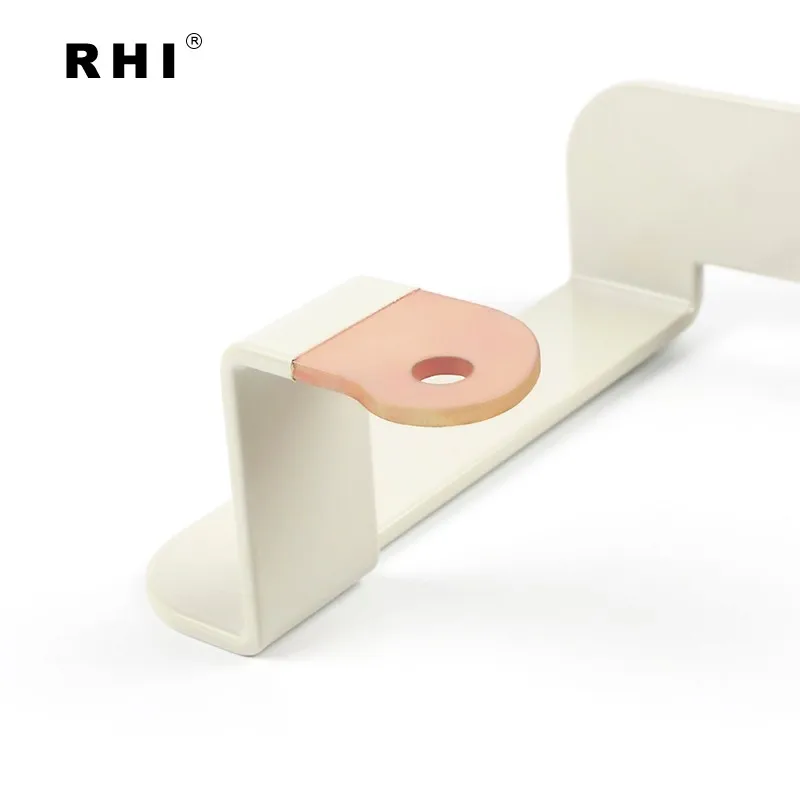

Product Details Show
Why Choose Us
1, Standard workshop & comfortable office
Equipment & technology
2, Professional team & First-class equipments
3, HIgh quality products & good sales & after sales
