Storage bended copper battery bus bar for electric vehicle

FOB Reference Price:Get Latest Price
  • >=10 Pieces
Lead Time:
Quantity(Pieces) 1 - 1010 >1010
Est. Time(days) 3 Negotiable
Customized packaging (Min. Order: 100 Pieces)
Customized logo (Min. Order: 100 Pieces)


Graphic customization (Min. Order: 100 Pieces) Less
$3.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
Place of Origin:
Brand Name:
Model Number:
battery bus bar
as your request
nickel plated
Insualtion part:
PVC dipping
can customized for you
PVC dipping color:
Used in batter pack & new vehicle
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day battery bus bar
Packaging & Delivery
Packaging Details
battery bus bar
First in poly bag,then in carton.Or as your request.
Ningbo or Shanghai
Picture Example:
Lead Time :
Quantity(Pieces) 1 - 1010 >1010
Est. Time(days) 3 To be negotiated
Product Details

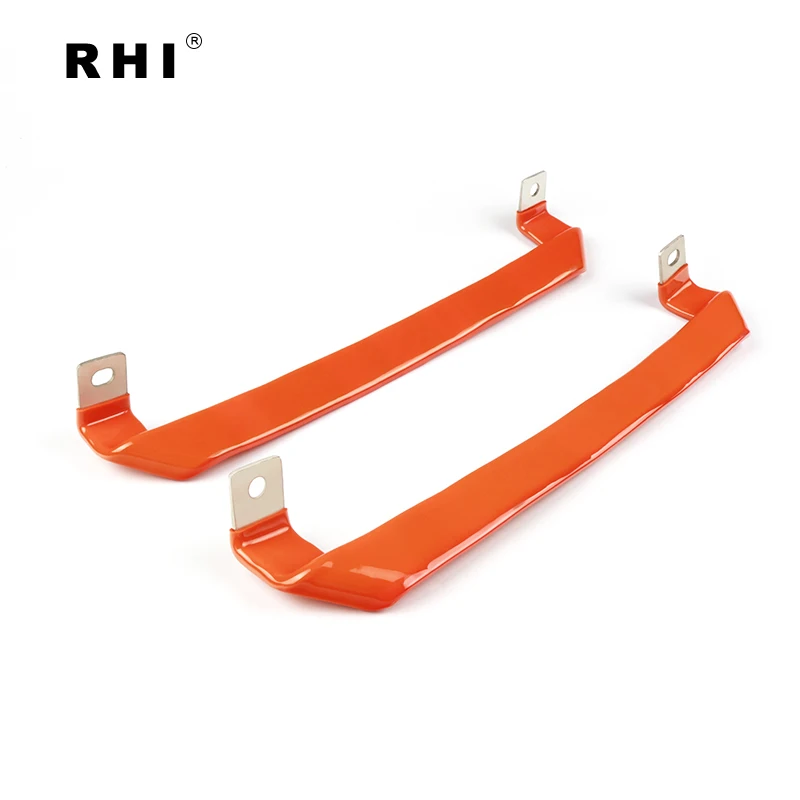

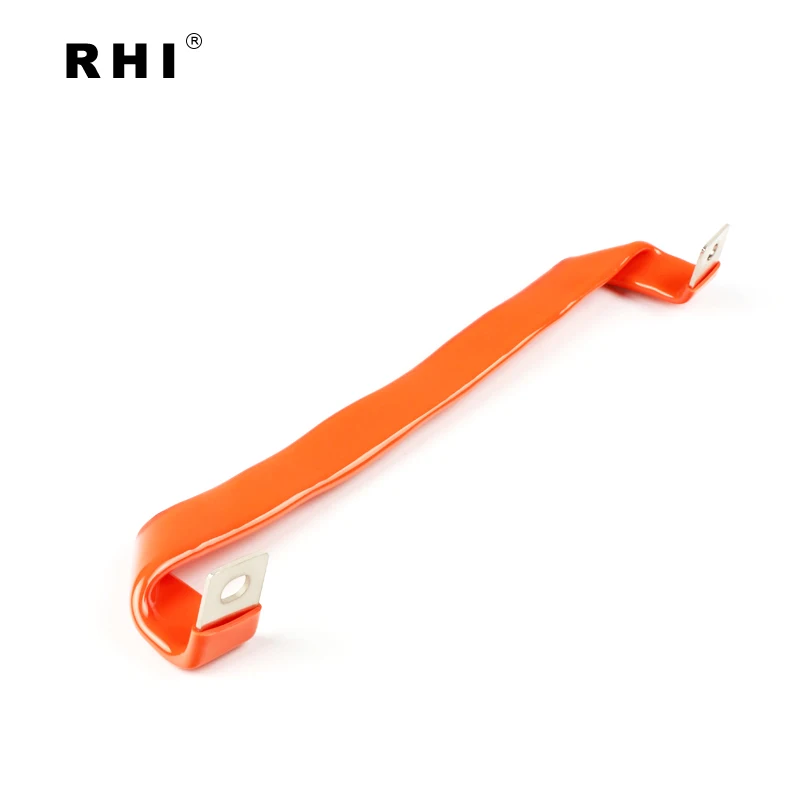

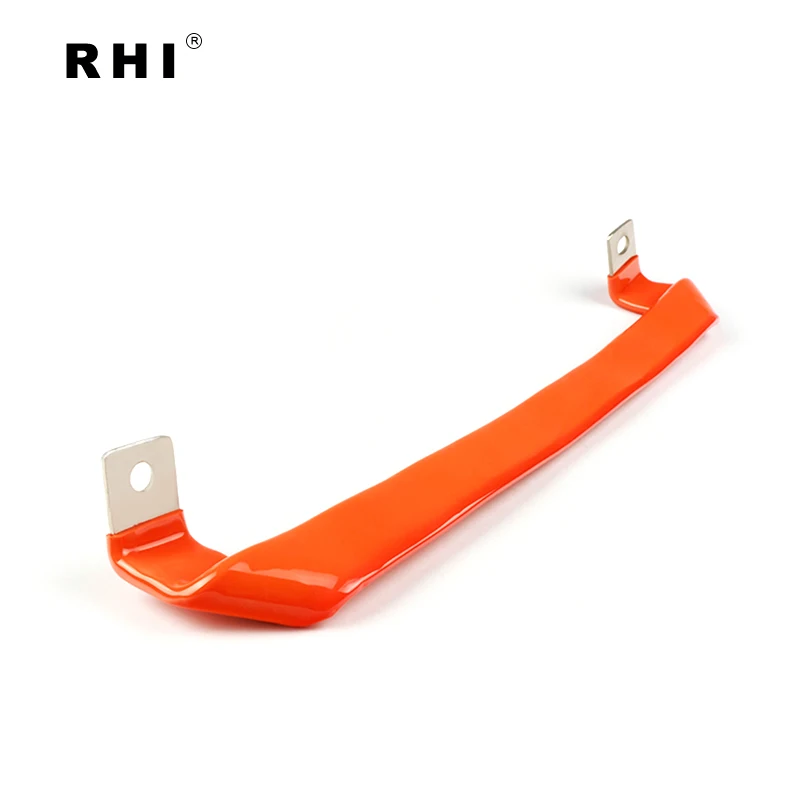

Storage bended copper battery bus bar for electric vehicle

RHI specialize in custom designing and manufacturing bus bars for automotive, battery bank, power storage, switch gear etc. Custom bus bars can be plated in tin, nickel or silver to suit specific applications. Our technicians can assist customers in developing product design and develp prototypes from client drawings. With copper bus bars, customers can eliminate wiring errors and reduce assembly costs.


Material Standard :GB : T2 Copper with Min. 99.9% ,DIN: E-Cu58 (Number: 2.0065),EN: Cu-ETP ( Number: CW004A),ISO: Cu-ETP, UNS: C11000, JIS: C1100,BS: C101
Resistance :0.00001Ω
Conductivity :57%
Copper Foil of Single Layer Thickness :0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure
Insulation Material :PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times.Insulation Performance PE and PVC are good, PVC dipping is better than PE heat shrink tubes
Flame Retardant/Fire Resistance :UL94-V-0 or upon you request
Leakage Testing PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA;
In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA;
Surface Plating :Nickel, tin or silver plated etc
Plating Thickness:Normally 3um to 12um
Salt Spray Testing: In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
Bending Testing Bend 10000 times in 15 radian angle without breakage or fracture.
Temperature Rise Testing :Depend on flexible busbar cross-sectional area,
We can offer all temperature rising test report before delivery if you request
Operating Temperature :-45 to +150 ºC
Copper Foil Tensile Strength ≥500N
Quality Management Standard Meet Auto Industry IATF 16949

Product Show
Product Application
Busbar tester
Why Choose Us

About us

1, Standard workshop & comfortable office. RHI is built in 2002. We are specialized in producing new energy products like copper busbar and covers.

Equipment & technology

2, Professional team & First-class equipments. With experienced workers and automatic machines , we guarantee good quality and fast delivery time.


3, All copper busbar size and models can be customzied. Sample order or small order is accepted. Welcome to inquiry us, we'll give you reply in 24 hours.
