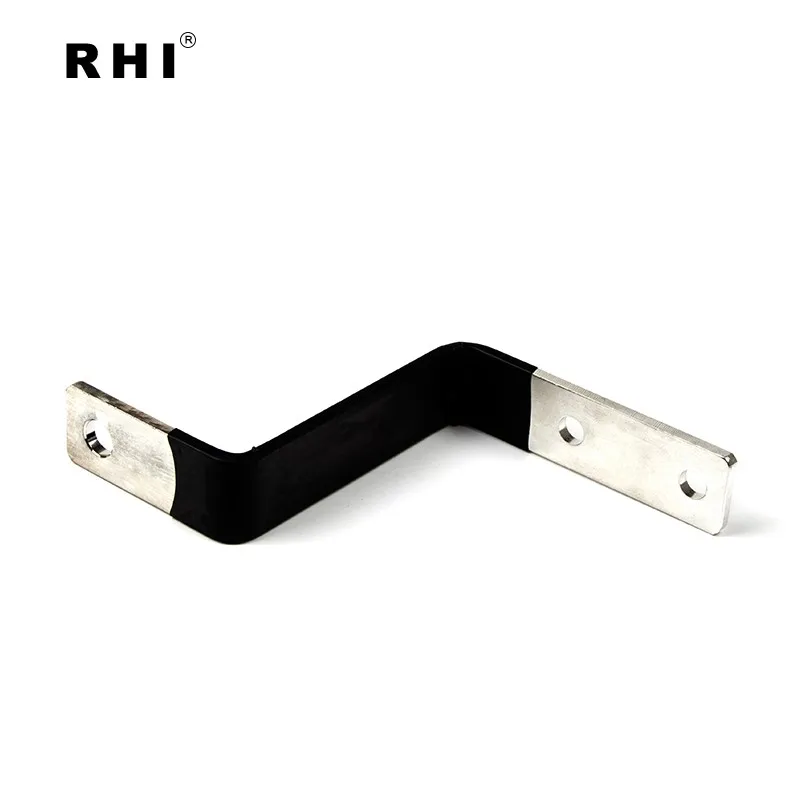

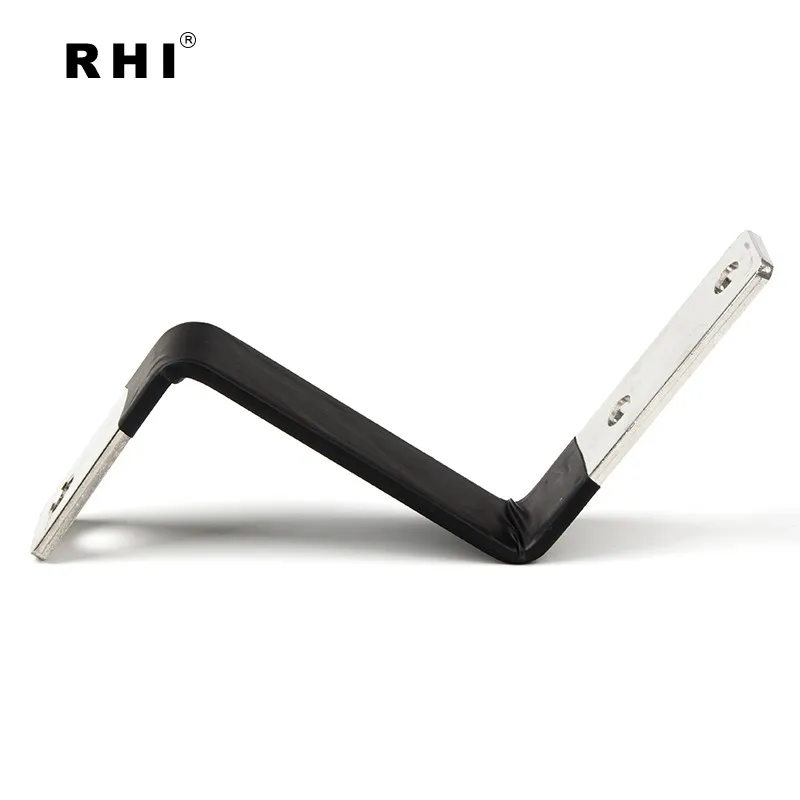

High current car battery copper bus bar with black heat shrink tube

FOB Reference Price:Get Latest Price
  • >=10 Pieces
    $1.00
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples - $5.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
RHI
Model Number:
bus bar
Application:
Construction
Shape:
Round
Length:
100mm
Grade:
Copper
Cu (Min):
99.9%
Alloy Or Not:
Non-alloy
Item:
copper bus bar
Material:
copper
Size:
as your request
Plate:
tin plated
Hardness:
Hard
Insualtion part:
heat shrink tube
Protecting part:
pvc cover
Appliaction:
battery pack,new energy car
Certificate:
ROHS,IATF16949
Visiting company:
Welcome
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day copper bus bar
Packaging & Delivery
Packaging Details
copper bus bar
First in poly bag,then in carton.Or as your request.
Port
Ningbo or Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product Details

High current car battery copper bus bar with black heat shrink tube

RHI specialize in custom designing and manufacturing bus bars for automotive, battery bank, power storage, switch gear etc. Custom bus bars can be plated in tin, nickel or silver to suit specific applications. Our technicians can assist customers in developing product design and develp prototypes from client drawings. With copper bus bars, customers can eliminate wiring errors and reduce assembly costs.

Feature
Material Standard :GB : T2 Copper with Min. 99.9% ,DIN: E-Cu58 (Number: 2.0065),EN: Cu-ETP ( Number: CW004A),ISO: Cu-ETP, UNS: C11000, JIS: C1100,BS: C101
Resistance :0.00001Ω
Conductivity :57%
Copper of Single Layer Thickness :1/2/3/5/10mm,depend on bus bar structure
Insulation Material :PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times.Insulation Performance PE and PVC are good, PVC dipping is better than PE heat shrink tubes
Flame Retardant/Fire Resistance :UL94-V-0 or upon you request
Leakage Testing PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA;
In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA;
Surface Plating :Nickel, tin or silver plated etc
Plating Thickness:Normally 3um to 12um
Salt Spray Testing: In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
Bending Testing Bend 10000 times in 15 radian angle without breakage or fracture.
Temperature Rise Testing :Depend on flexible busbar cross-sectional area,
We can offer all temperature rising test report before delivery if you request
Operating Temperature :-45 to +150 ºC
Copper Tensile Strength ≥500N
Quality Management Standard Meet Auto Industry IATF 16949
