Press Welded pvc dipping flexible Copper Foil Connectors for UPS

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Pieces | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Samples - $5.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
RHI
Model Number:
BCB
Item:
press welded copper flexible
Material:
T2 copper
Copper Foil Thickness:
0.1mm, 0.2mm and 0.5mm (0.5mm is not so flexible)
Insulated coating:
2:1 or 3:1 heat shrink tubes, soft PVC or epoxy powder
specification:
Standard or according to customer's request
Width:
10mm or others
Thickness:
1mm or others
Length:
100mm or others
How to order:
Size or drawing
Application:
Power,power substation,generator,transformer etc
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day press welded copper flexible
Packaging & Delivery
Packaging Details
press welded copper flexible
carton, wooden box and pallet.
Port
Ningbo/Shanghai
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 3 To be negotiated

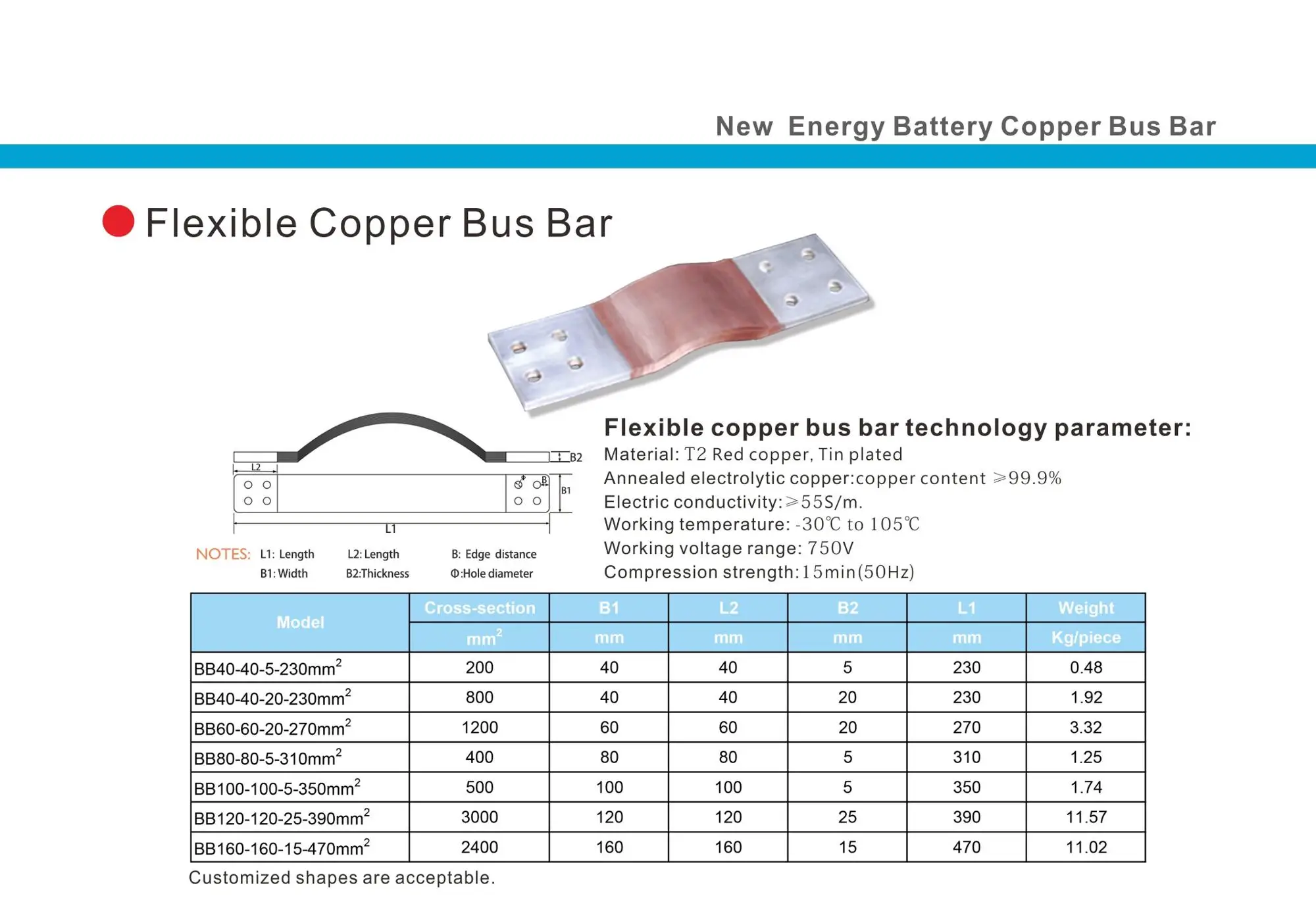

Press Welded Copper Foil Connectors flexible insulated busbars

Product Description

Flexible busbar is made of T2 copper foil, which is 99.9% copper contented. It capitals the products excellect conductivity with less impurities. Laminated copper busbar have more current carrying surface area.

The surface of flexible busbar can be bare or plated to protect copper busbar from oxidation or creating aerugo. Clean and  free-from- burr holes make sure good contact of bolts and busbar.

Flexible busbar is flexible and can be bended with hands. It is easy to use and can fit the equipments well. The copper foil busbar have also advantage of anti-vibration for moving vehicles.

Products can be made according drawing and customer design. Any requirements can be sent by email and indicated on drawing. Our enginner will do best to meet your needs.

Copper Content:99.9%

Conductivity: > 100 IACS

Copper  Thickness: • 1mm  • 2mm  • 3mm  • Other

Copper  Width: • 10mm   • 20mm   • 30mm   • Other

Plating Options: • Tin plating • Nickle plating • Sliver plating

Insulation Options:• Heat shrink tube   • PVC dipping coat  • expoy powder

End Shape: • Semicircle         • Round Corner      • Square Corner



Advantage

1. Improve equiments properity.

Copper busbar can reduce the resistance and lower power cosumption. Copper busbar is capable of steady current carrying capacity and voltage-sharing.

2. Easy to install, examine and maintain.

Copper busbar can be installed with simple tools. Anyone can use it with bolt, nut and screwdriver. The workers examine the property with tester.

3. Reduce Cost

Copper Busbar increase the serve-life of machines and equipments. Good quality T2 copper material can lower the temperature raise and loss of equipement parts

Feature
Application



Our Services

1) Free Samples

2) Free Mold for Custom size if you have large quantity

3) Best After sales Service

4) Offer C/O, Form E, Form A etc

5) Trade Assurance

6) New energy battery accessories and cable assembly



FAQ



1. Q: Are you factory or trading company?

     A: We are factory.



2. Q: Where is your factory located?

     A: We are in Deyu Road X Industrial Zone, Yueqing City Zhejiang, China before visit.



3. Q: Can I get sample before making order?

    A: We can send you free samples if you tell us the model and size you need, or you send us your drawing.



4. Q: Do you accept small order or trial order?

    A: Small order and trial order is acceptable.



5. Q: How long I can get a sample?

    A: For sample we have in stock, we can send it in one day.



6. Q: How you inspect goods?

    A: We have inspection department. All goods will be inspected before packing.



7. Q: What's your payment term?

    A: For small order, we suggest 100% before production to save time and bank charge. For bulk order, payment is 30% TT before production  70% TT before delivery.
