RHI Electrical insulated flexible copper power busbars

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Pieces | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)
Samples - $5.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
RHI
Model Number:
copper busbar
Application:
Electrical, Electrical equipments , new energy vehicle, power supply system etc
Shape:
Square
Length:
10mm to 2000mm, 10mm or others
Grade:
copper
Cu (Min):
99.9%
Alloy Or Not:
Non-alloy
Item:
copper busbar
Width:
4mm to 100mm
Thickness:
1mm to 20mm
Insulated layer's Color:
Black,Red,or others
Insulated layer's material:
Heat shrinkable sleeeves or pvc dip sleeves
Surface:
Tin or nickel plated
Polish:
OK
PVC cover:
welcomed
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day copper busbar
Packaging & Delivery
Packaging Details
copper busbar
Inner packing :plastic bags.then put into export cartons .Depends on your requirements
Port
Ningbo
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 3 To be negotiated
Product Description

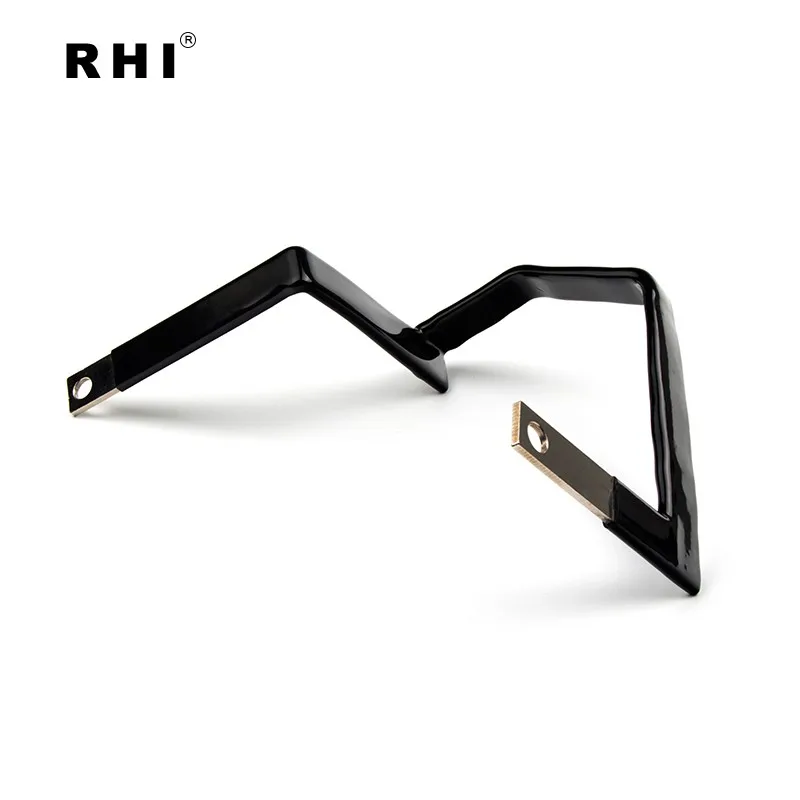

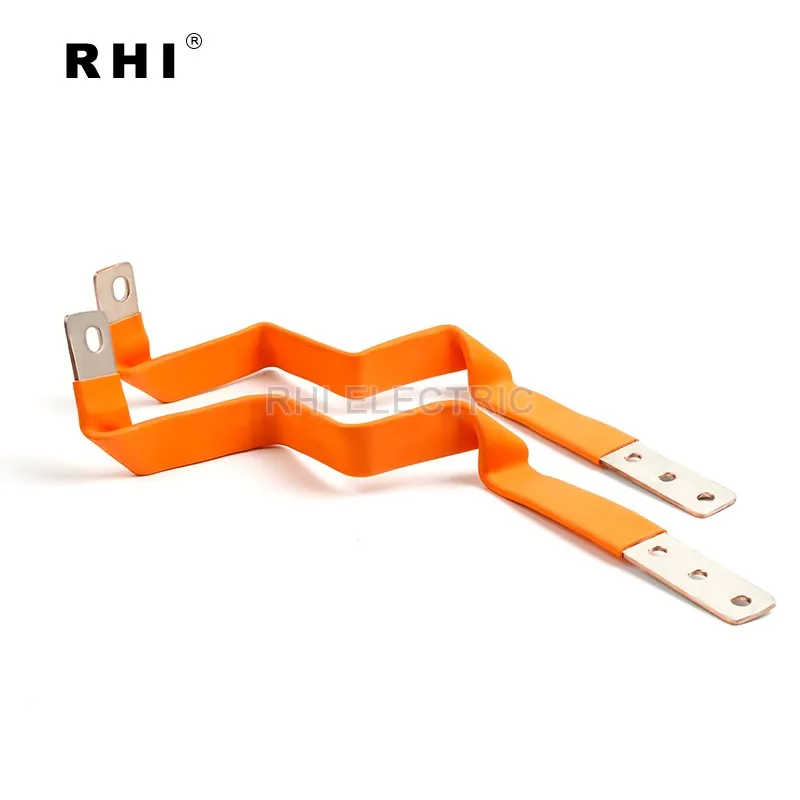

RHI Electrical insulated flexible copper power busbars


Features


Material Standard :GB : T2 Copper with Min. 99.9% ,DIN: E-Cu58 (Number: 2.0065),EN: Cu-ETP ( Number: CW004A),ISO: Cu-ETP, UNS: C11000, JIS: C1100,BS: C101
Resistance :0.00001Ω
Conductivity :57%
Copper Foil of Single Layer Thickness :0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure
Insulation Material :PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not                                       easy to break when it be bent with many times.Insulation Performance PE and PVC are good, PVC                                       dipping is better than PE heat shrink tubes
Flame Retardant/Fire Resistance :UL94-V-0 or upon you request

Leakage Testing PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA;
                                       In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA;
Surface Plating :Nickel, tin or silver plated etc
Plating Thickness:Normally 3um to 12um
Salt Spray Testing: In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
Bending Testing Bend 10000 times in 15 radian angle without breakage or fracture.
Temperature Rise Testing :Depend on flexible busbar cross-sectional area,
                                                We can offer all temperature rising test report before delivery if you request
Operating Temperature :-45 to +150 ºC
Copper Foil Tensile Strength ≥500N
Quality Management Standard Meet Auto Industry IATF 16949

Production process
Our Service


1) Free samples
2) Free mold for custom size if you have large quantity
3) Best after sales service
4) Offer C/O, Form E, Form A etc
5) Alibaba trade assurance paid by credit card
6) 12 automatic production flow lines with high precision machinery

7)IATF 16949ISO9001, ROHS ,REACH Standard

8) Welcome to visit our factory at any time.

FAQ


1. Q: Are you factory or trading company?
A: We are factory with 10 year's exporting experience.

2. Q: Where is your factory located?
A: We are located in deyu Road Xiangyang Industrial Zone, Liushi Town,Yueqing City, Zhejiang,China.

3. Q: Can I get sample before making order?
A: We can send you free samples if you tell us the model and size you need, or you send us your drawing.

4. Q: Do you accept small order or trial order?
A: Small order and trial order are acceptable.


5. Q: How long can i get a sample?
A: For standard sample we have in stock, we can send it in 2-3 days.
For customized model, we can send sample within 7-10 days.

6. Q: How do you control your quality of goods?
A: We have inspection department. All goods will be inspected before packing.

7. Q: What's your payment term?
A: For small order, we suggest 100% before production to save time and bank charge.
     For bulk order, payment is 30% TT before production 70% TT before delivery.

8.Q: Do you accept our design or OEM size? Could I print logo/brand on the goods?
A: Yes ,we can do any sizes if you tell us your requirements or drawing, and any logo can be printed.
